Supports dual AMD EPYC 9004-Series processors with Socket SP5 LGA-6096 for extreme compute power.
Up to 6TB DDR5-4800 memory capacity across 24 slots for unparalleled multitasking and data throughput.
Eight PCIe 5.0 x16 slots supporting 8 double-wide GPUs, ideal for AI, HPC, and graphics-intensive workloads.
Flexible expansion with optional PCIe and OCP 3.0 slots for enhanced networking and ultra-fast NVMe storage.
Robust networking with dual 10GBASE-T or 1G RJ45 LAN ports plus dedicated management LAN for seamless control.
Eight hot-swappable 3.5″ drive bays with SATA and optional NVMe support for high capacity and speed.
Four redundant 3000W 80 Plus Platinum power supplies ensuring reliable, efficient, and uninterrupted operation.
4U rack-mountable chassis designed for optimal cooling, accessibility, and high-density deployments.
The Exxact TensorEX TS4-169350989 is a high-performance 4U rackmount server engineered for demanding AI, HPC, and data-intensive workloads. It supports dual AMD EPYC 9004-Series processors and offers extensive customization options to meet diverse computational needs.
The Exxact TensorEX TS4-169350989 is built to support the most demanding computing tasks, starting with its powerful processor configuration. This server supports up to two AMD EPYC 9004-Series processors, including the latest Genoa, Genoa-X, and Bergamo models.
These CPUs are designed with the SP5 (LGA-6096) socket, which provides a high pin count to support increased memory bandwidth, greater core density, and higher overall throughput. The architecture is based on a system-on-chip (SoC) design, eliminating the need for a separate chipset, which simplifies board design and enhances reliability.
With a thermal design power (TDP) rating of up to 400 watts per CPU, the system is capable of handling processors with extremely high performance ceilings. The compatibility with such a broad range of EPYC chips from 16 to 128 cores makes this server highly versatile for a wide variety of workloads, including HPC, AI inference and training, virtualization, and large-scale analytics.
Whether you require high-frequency performance or massive core counts, this processor platform provides the raw compute power and flexibility to scale as needed. Its CPU configuration positions the TS4 as a future-proof choice for enterprises and research institutions alike.
The TS4 is a memory powerhouse, capable of supporting up to 6TB of DDR5 ECC Registered DIMMs across 24 slots. This next-generation memory architecture offers improved bandwidth and lower power consumption compared to DDR4, making it ideal for handling data-intensive workloads.
The system supports speeds up to 5600 MT/s, ensuring that applications relying on rapid data access such as AI model training, genome sequencing, or financial simulations run at peak efficiency. The use of ECC (Error-Correcting Code) memory ensures high reliability and data integrity, which is especially important in enterprise or scientific computing environments where downtime and data corruption are unacceptable.
The 24 DIMM slots allow for a range of configurations, from entry-level setups using 16GB modules to high-capacity deployments with 128GB modules per slot. This flexibility makes it easy to scale memory capacity based on current needs and future growth.
Whether you’re optimizing for performance, capacity, or both, the memory subsystem in the TS4 ensures that the system remains balanced and responsive under extreme workloads.

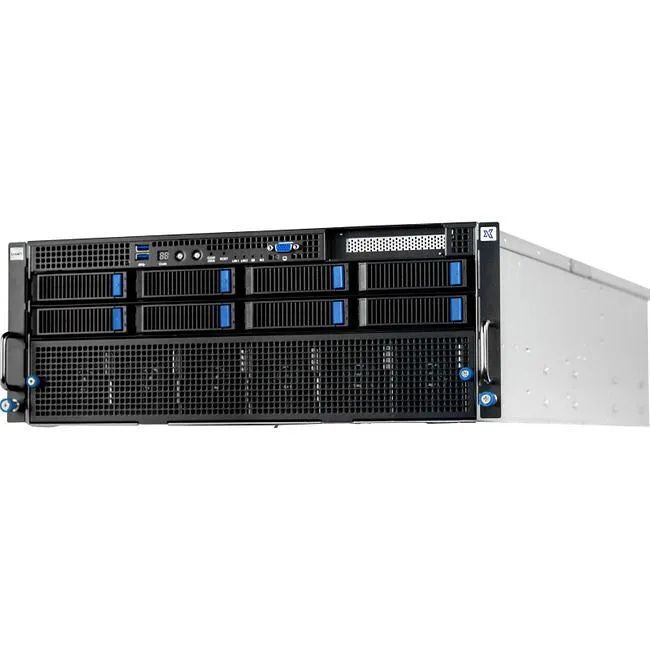

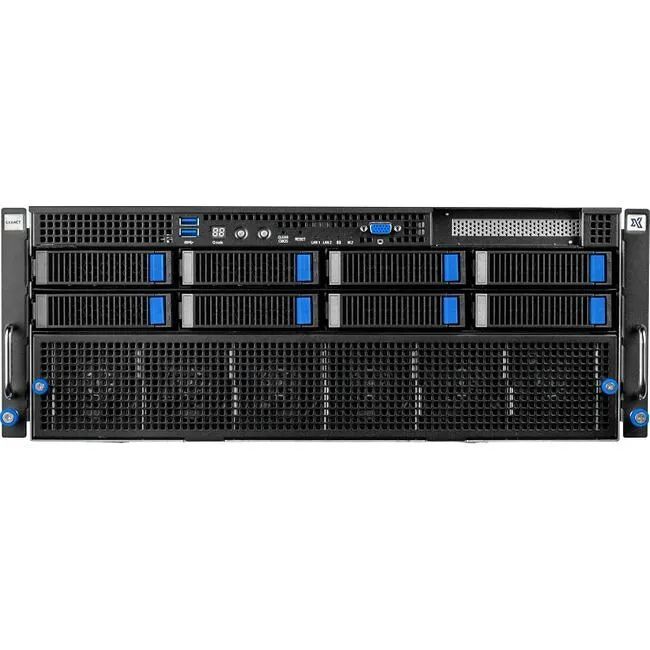

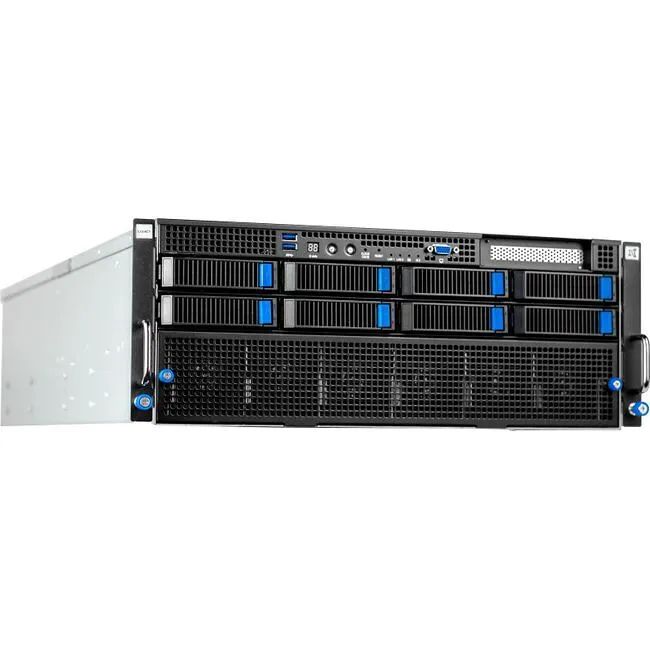

The Exxact TS4-169350989 features a robust and flexible storage system tailored for high-performance environments. The chassis includes 8 hot-swappable 3.5” drive bays, allowing for easy maintenance and scalability without powering down the system.
Out of these, 4 drives are SATA-compatible by default, while the remaining bays support optional NVMe drives depending on the PCIe configuration. This hybrid design provides the ideal balance between high-capacity SATA storage and ultra-fast NVMe for critical workloads.
Whether you’re handling large datasets, running virtual machines, or storing high-resolution AI training data, this system can scale to meet your needs. Additionally, the system supports one M.2 slot, ideal for boot drives or additional cache layers.
Users can choose from a wide range of hard drives (4 TB to 22 TB) and SSDs (480 GB to 7.68 TB), ensuring flexible deployment options for different use cases from data archiving to high-speed, low-latency computing. Overall, the TS4’s storage setup is versatile, high-capacity, and performance-optimized for enterprise environments.
The Exxact TS4-169350989 server offers exceptional flexibility and power in terms of graphics and expansion capabilities, making it highly suitable for AI training, simulation, and other GPU-intensive workloads.
At the core of its graphical subsystem is the ASPEED AST2600 graphics controller, which provides reliable onboard video for system management and monitoring without consuming PCIe lanes or requiring a discrete GPU for basic tasks.
This is particularly valuable in headless server deployments and remote management environments.

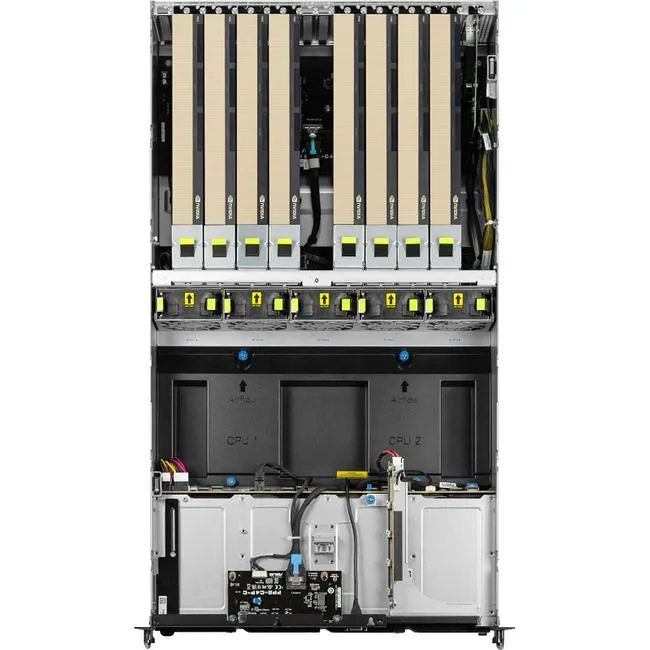

When it comes to expansion, this system is designed to accommodate high-throughput GPU and accelerator configurations. It includes 8x PCI Express 5.0 x16 slots, supporting up to 8 double-wide GPUs a critical feature for deep learning, high-performance computing (HPC), and massive parallel processing workloads.
Additionally, there’s 1x PCIe 5.0 x8 slot at the front for optional HBA/RAID cards, providing enhanced storage management capabilities.
What sets the TS4 apart is its optional expansion flexibility: users can configure an additional 1x PCIe 5.0 x16 and 1x PCIe 5.0 x8 slot at the rear for network interface cards (NICs) or choose configurations that enable two NVMe drives through a PCIe-based OCP 3.0 slot.
This level of modularity allows organizations to tailor the system to meet specific performance, networking, or storage requirements whether that means scaling GPU power, adding ultra-fast NVMe storage, or enhancing connectivity.
The Exxact TS4-169350989 is built with robust networking capabilities to meet the needs of modern data centers, cloud environments, and high-speed compute clusters.
It comes equipped with dual 10GBASE-T or 1000BASE-T RJ45 LAN ports, offering high-speed data transfer for demanding applications such as AI model training, distributed computing, and high-throughput storage systems.
The inclusion of 10GbE ensures low-latency and high-bandwidth communication, essential for efficient synchronization across nodes in clustered environments.
In addition to the primary networking interfaces, the system includes a dedicated RJ45 management LAN port.
This allows for out-of-band management via IPMI or other remote monitoring protocols, enabling system administrators to manage, troubleshoot, and maintain the server without needing physical access to the data center.
This enhances operational uptime and facilitates seamless maintenance and monitoring, even during critical failure states.
Optional configurations further extend the networking capabilities, including support for PCIe-based NIC expansions or an OCP 3.0 slot, which can deliver additional 10/25/50/100Gbps networking bandwidth depending on organizational needs.
This level of flexibility makes the TS4 an excellent choice for businesses that expect scalability, high-speed connectivity, and reliable system management.

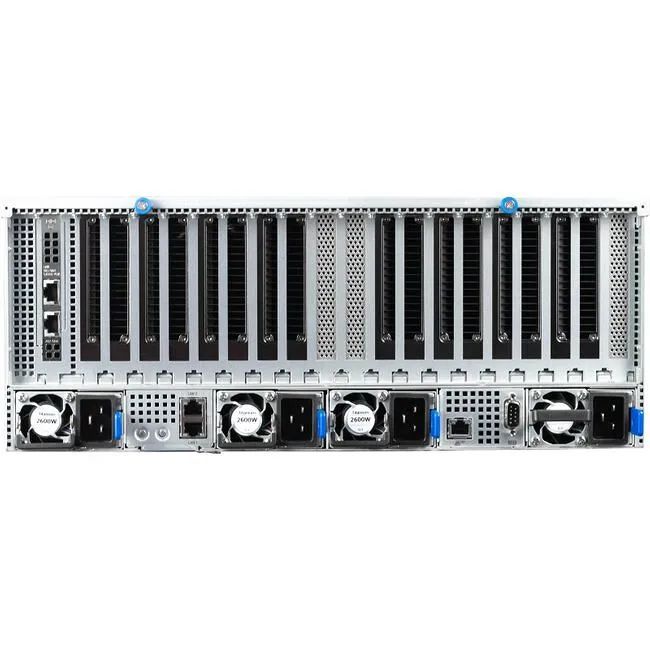

Power reliability and efficiency are crucial in any high-performance server, and the Exxact TS4-169350989 delivers both. The system is equipped with four power supplies configured in a 2+2 redundant layout.
This configuration ensures that even if two power supplies fail, the system remains operational a critical factor for uptime in enterprise and mission-critical deployments.
Each power supply unit provides up to 3000W of energy and is 80 Plus Platinum certified, meaning it offers high efficiency even under heavy load conditions.
This not only reduces overall power consumption but also minimizes heat output, contributing to improved thermal management within the server rack.
The redundant design and platinum certification provide peace of mind for data center administrators, ensuring continuous power delivery without the risk of system failure due to power issues.
Whether operating under full GPU load or during idle cycles, the power architecture of the TS4 is designed for stability, scalability, and sustainability.
Storage flexibility is another hallmark of the Exxact TS4-169350989. The system includes 8 hot-swappable 3.5″ drive bays, which support standard SATA interfaces for HDDs or SSDs.
These hot-swap bays make it easy to maintain or upgrade storage without powering down the system a vital feature for enterprise environments requiring high availability.
The platform supports 4 native SATA interfaces via the system-on-chip (SoC) design and offers optional support for up to 2 NVMe drives.
These NVMe slots are enabled depending on the PCIe configuration selected, providing lightning-fast data access speeds for applications requiring rapid read/write operations such as real-time analytics, large dataset processing, or scratch disk storage in AI training pipelines.
With scalable storage options and support for a mix of high-capacity SATA and high-speed NVMe drives, users can optimize the TS4 for their specific performance-to-capacity needs.
Whether you need long-term archival storage or ultra-fast temporary storage, this server adapts to a wide range of enterprise workloads with ease.
The Exxact TensorEX TS4-169350989 is ideal for:
