Up to 4TB DDR4 ECC Registered Memory across 32 DIMM slots
8× PCIe 4.0 x16 slots for double-width GPU cards
Additional 1× PCIe 4.0 x16 rear slot for expansion
Supports high-performance NVIDIA GPUs including A100, A40, RTX series
8× 2.5″ hot-swap SATA drive bays + 2× 2.5″ NVMe bays for fast, scalable storage
Integrated ASPEED AST2500 with front VGA port for monitoring
Dual 1000BASE-T Ethernet ports + 1 dedicated management LAN port
3× 2200W redundant power supplies (80 Plus Platinum certified)
Advanced airflow design in a durable 4U rackmount chassis
Ideal for AI, Deep Learning, HPC, and Scientific Computing
The Exxact TensorEX TS4-194492555-DPN is a high-performance GPU server engineered to meet the rigorous demands of AI, deep learning, and high-performance computing (HPC) workloads. Built on a 4U rackmount chassis, this powerful system is purpose-built for professionals, researchers, and enterprises who require accelerated computing power and extreme scalability for data-intensive tasks.
At its core, the TS4-194492555-DPN supports dual AMD EPYC processors (7002, 7003, and 7003X series), known for their unmatched multi-threading capabilities, high memory bandwidth, and efficient architecture. These processors are ideal for parallel computing and offer robust support for virtualization, analytics, and scientific simulation workloads.
What truly sets this server apart is its massive GPU capacity. With 8 double-width PCIe 4.0 x16 slots, it accommodates the most powerful GPUs available on the market, including NVIDIA A100, A40, and other Tensor Core or RTX GPUs. This allows organizations to run complex AI training models, large-scale simulations, and real-time inference with unmatched speed and accuracy. An additional PCIe slot on the rear side further expands its versatility.
Complementing the processing power is a memory capacity of up to 4TB DDR4 ECC Registered RAM, distributed across 32 DIMM slots. Combined with fast NVMe and SATA storage options, users can access, store, and process massive datasets with efficiency and speed.
Designed for deployment in modern data centers, the TS4-194492555-DPN features redundant 2200W Platinum-rated power supplies, robust network connectivity, and tool-less access for easy maintenance.
In short, this server is a future-ready compute powerhouse — ideal for businesses or institutions focused on cutting-edge AI, machine learning, HPC, and scientific research.
This system is designed to maximize processing capabilities:
This dual-socket configuration enables high core-count deployment, with options up to 64 cores per CPU, ideal for multi-threaded applications and parallel computing.
The Exxact TensorEX TS4-194492555-DPN is engineered to support dual AMD EPYC processors, specifically from the 7002, 7003, and 7003X series. These processors are renowned for their high core counts, substantial cache sizes, and robust performance, making them ideal for compute-intensive tasks.
Each processor operates within a Thermal Design Power (TDP) of up to 225W, ensuring efficient thermal management even under heavy workloads. The server utilizes the Socket SP3 architecture, providing a stable and scalable platform for various applications.
With this dual-socket configuration, the system can leverage the full potential of AMD’s EPYC line, offering exceptional processing power for tasks such as AI model training, data analytics, and virtualization.
The TS4 provides tremendous flexibility for memory-intensive tasks:
This allows for extremely large memory footprints, perfect for in-memory databases, machine learning model training, and real-time data processing.
Equipped with 32 DIMM slots, the TS4-194492555-DPN supports up to 4TB of DDR4-3200 ECC Registered memory. This extensive memory capacity ensures that the server can handle large datasets and memory-intensive applications with ease.
The use of Error-Correcting Code (ECC) memory enhances system reliability by detecting and correcting data corruption, which is crucial for mission-critical operations. The high memory bandwidth and capacity make this server suitable for applications such as in-memory databases, large-scale simulations, and real-time data processing.
High-speed, scalable storage is a key component of the TS4:
The mixed support for both SATA and NVMe allows users to balance capacity and performance requirements.
The TS4-194492555-DPN offers versatile storage options to meet diverse data requirements. It features 8 hot-swap 2.5″ SATA drive bays and 2 hot-swap 2.5″ NVMe U.2 drive bays, allowing for a mix of high-capacity and high-speed storage solutions.
The integration of both SATA and NVMe interfaces provides flexibility in configuring the storage subsystem to balance performance and cost. This setup is ideal for environments that require rapid data access and high storage throughput, such as big data analytics and content delivery networks.
Built to accelerate AI workloads with extensive GPU support:
This makes it ideal for large-scale model training, inferencing, rendering, and simulation.
Designed with AI and high-performance computing in mind, the server supports up to 8 double-width GPUs via PCIe 4.0 x16 slots, along with an additional PCIe 4.0 x16 slot at the rear.
This configuration enables the deployment of powerful GPUs like NVIDIA’s A100, A40, and RTX series, facilitating accelerated computing for deep learning, scientific simulations, and complex data processing tasks.
The support for NVIDIA NVLink allows for high-bandwidth, low-latency GPU interconnects, further enhancing multi-GPU performance. This expansion capability ensures that the server can adapt to evolving computational demands.
Though it’s a server, basic display output is available via the onboard VGA, primarily for management and diagnostics.
For system management and monitoring, the server includes an ASPEED AST2500 graphics controller, providing basic video output capabilities. A front-facing VGA port allows administrators to connect a monitor directly for troubleshooting and maintenance tasks.
While not intended for graphics-intensive applications, this onboard graphics solution ensures that essential display functions are available without occupying additional expansion slots.
Robust networking capabilities for enterprise and data center environments:
Ideal for both data traffic and remote server management.
Networking is a critical component of any server infrastructure, and the TS4-194492555-DPN is equipped to meet these needs. It features two 1000BASE-T RJ45 Ethernet ports for standard network connectivity and a dedicated RJ45 management LAN port for out-of-band management via IPMI.
This separation of management and data traffic enhances security and allows for efficient remote administration. The server’s networking capabilities ensure reliable communication within data centers and enterprise environments.
Simplified external connectivity:
These provide essential options for peripheral connection and serviceability.
The server provides essential I/O interfaces to support various peripherals and devices. It includes two front-facing USB 3.0 ports, facilitating quick access for external storage devices, input devices, or other USB peripherals.
The combination of SATA and NVMe interfaces for internal storage allows for flexible configuration options to meet specific performance and capacity requirements.
These interfaces ensure that the server can integrate seamlessly into diverse operational workflows.
Enterprise-grade power redundancy:
The redundant power design ensures reliability and uptime, even in case of power module failure.

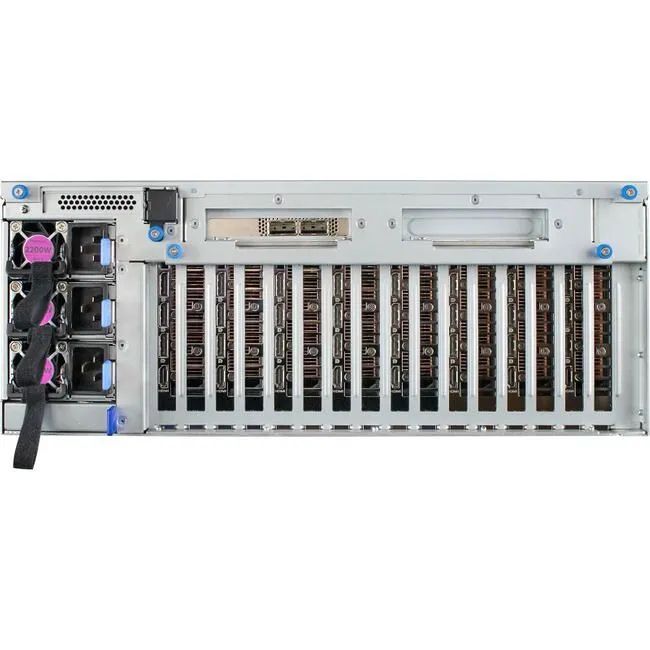

To ensure uninterrupted operation, the TS4-194492555-DPN is equipped with three 2200W redundant power supplies in a 2+1 configuration.
This redundancy provides fault tolerance, allowing the server to continue operating even if one power supply fails.
The power supplies are 80 Plus Platinum certified, indicating high energy efficiency and reduced operational costs. This design supports the server’s high-performance components while maintaining energy-conscious operation.
Despite its massive compute and storage capabilities, the system maintains a space-efficient rack-mount design.

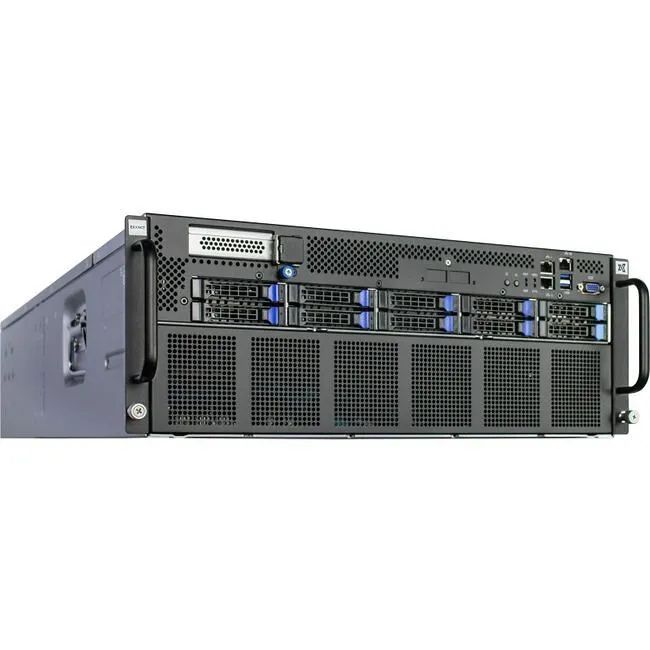

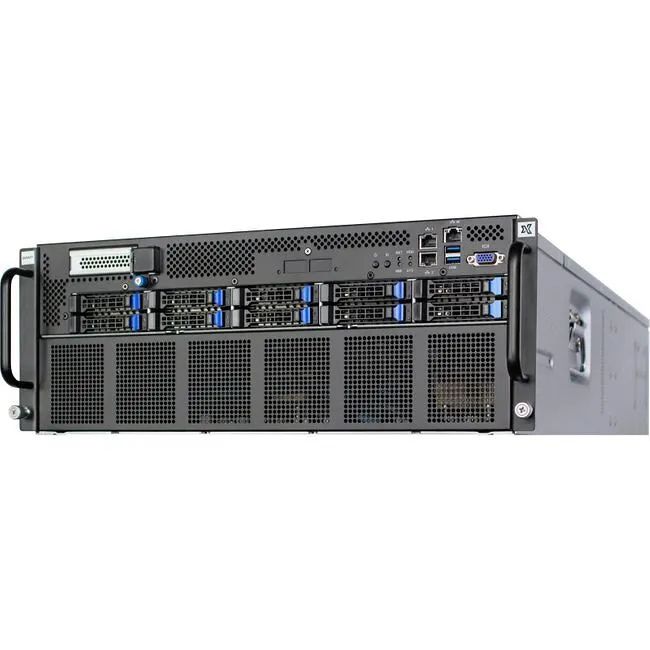

The server’s physical design is optimized for data center deployment. It occupies a 4U rack space, measuring 6.93 inches in height, 17.64 inches in width, and 34.65 inches in depth.
The black chassis is built for durability and efficient airflow, ensuring optimal thermal performance. Its form factor allows for easy integration into standard server racks, facilitating scalability and maintenance in enterprise environments.
The Exxact TS4-194492555-DPN is engineered for next-generation AI infrastructure. With support for top-tier AMD EPYC processors, up to 8 high-end NVIDIA GPUs, 4TB of memory, high-speed NVMe storage, and enterprise-grade power redundancy, this server is a turnkey solution for any organization looking to scale its deep learning or HPC workloads.
