Graphics Processing Units (GPUs) have evolved far beyond their original purpose of rendering images for video games.
Their parallel processing capabilities have made them a cornerstone technology in modern data centers, especially for artificial intelligence (AI), high-performance computing (HPC), and advanced graphical workloads.
This guide will cover every essential aspect of GPU-based server systems from architecture and applications to practical considerations providing a comprehensive resource for users ranging from beginners to experts.

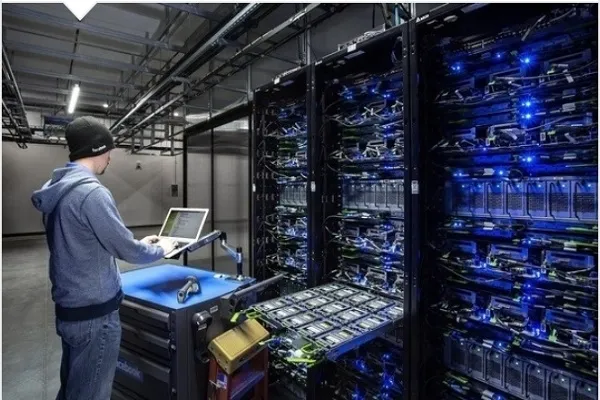

What is a GPU Server?
A GPU server is a specialized computer system that incorporates one or more Graphics Processing Units alongside traditional Central Processing Units (CPUs) to accelerate computational tasks that benefit from parallel execution.
Unlike CPUs, which typically have a handful of cores optimized for sequential task processing, GPUs contain thousands of smaller cores designed to execute many operations simultaneously.
This architectural difference enables GPU servers to handle massively parallel workloads more efficiently, such as training deep neural networks, rendering complex 3D graphics, and performing scientific simulations.
The key advantage of GPU servers is their ability to significantly reduce the time required for intensive computational tasks.
For instance, training a machine learning model that might take days on a CPU-only system can be completed in hours or even minutes when using GPUs.
This is because GPUs can process large blocks of data concurrently, taking full advantage of matrix and vector operations that dominate AI workloads.
Moreover, modern GPU servers are designed to provide a balanced system architecture where the CPU manages general system operations and orchestration, while GPUs focus on the heavy lifting of parallel computation.
The integration is supported by high-bandwidth communication channels, such as PCI Express (PCIe), NVLink, or NVSwitch, enabling rapid data transfer between CPUs and GPUs and among GPUs themselves.
Finally, GPU servers come in different configurations depending on the intended workload, from single-GPU systems suited for desktop research environments to multi-GPU clusters deployed in enterprise data centers. Choosing the right configuration depends on workload complexity, budget, cooling capabilities, and scalability requirements.
Key Applications of GPU Servers
GPU servers have transformed numerous fields by providing unparalleled computational power for specific tasks that demand parallel processing.
Their applications span a wide range of industries and use cases:
Artificial Intelligence and Deep Learning: Perhaps the most prominent use case of GPU servers is in AI.
Training complex deep learning models requires processing vast amounts of data, such as images, audio, or text, through layers of neural networks.
GPUs accelerate this training by handling many computations simultaneously, dramatically speeding up convergence and reducing experimentation time.
Beyond training, GPUs also power real-time inference, enabling AI-powered applications like natural language processing, computer vision, and recommendation systems.
3D Rendering and Visual Effects: In film production, animation, and gaming, rendering photorealistic images and effects demands immense computational resources.
GPU servers reduce rendering times from hours to minutes by distributing workloads across multiple GPU cores.
This capability supports real-time ray tracing, virtual production, and interactive 3D environments.
Scientific Computing and Data Analysis: Tasks such as molecular modeling, climate simulations, financial modeling, and genomics benefit from GPUs’ ability to accelerate matrix multiplications, Fourier transforms, and other math-heavy operations.
By enabling faster simulations and analyses, GPU servers accelerate research and discovery.
Virtualization and Cloud Gaming: GPU virtualization technologies allow multiple users or virtual machines to share a single physical GPU’s resources securely.
This is critical in cloud gaming, remote workstations, and multi-tenant data centers, providing scalable, cost-efficient access to GPU power without dedicated hardware for each user.
Overall, GPU servers have become foundational infrastructure in modern computational workflows, enabling breakthroughs that were previously impossible due to time or hardware limitations.
Architectures: From Rack-Mount Servers to High-Density GPU Farms
The physical and logical architectures of GPU servers vary widely to meet different performance, scalability, and space constraints.
Understanding these architectures is vital for designing or choosing an appropriate system.
Rack-Mount GPU Servers: These are the most common and versatile configurations found in enterprise data centers.
Typically housed in standard 1U to 4U rack units, these servers combine powerful CPUs with multiple GPUs connected via PCIe slots.
Rack-mount servers provide flexibility, allowing incremental scaling by adding more units as demand grows.
They also support advanced cooling and power delivery systems essential for high-density GPU installations.
High-Density GPU Systems (e.g., NVIDIA DGX, AMD HGX): These specialized systems maximize GPU count within a compact chassis.
Using proprietary interconnects like NVIDIA’s NVLink and NVSwitch, GPUs are connected directly to each other with very low latency and extremely high bandwidth, enabling much faster inter-GPU communication than traditional PCIe buses.
This tight coupling is essential for workloads requiring frequent synchronization, such as distributed deep learning training.
These systems often feature liquid cooling to manage the substantial heat output.
Single-Root vs. Dual-Root Topologies: In multi-GPU servers, the architecture can be designed so that all GPUs share a single CPU root complex (single-root), or are split across two CPU root complexes (dual-root).
Single-root configurations reduce latency and increase peer-to-peer GPU bandwidth, enhancing performance for tightly-coupled parallel workloads.
Dual-root systems may face bottlenecks due to inter-CPU communication overhead but offer increased CPU core counts and memory channels, benefiting hybrid workloads that require heavy CPU processing alongside GPUs.
Farm and Cluster Architectures: For extreme scalability, organizations deploy clusters of GPU servers connected via high-speed networking fabrics such as InfiniBand or Ethernet.
This setup enables distributed computing across thousands of GPUs, necessary for large-scale AI training, scientific simulations, or rendering farms.
Cluster management software orchestrates task distribution, load balancing, and fault tolerance.
Choosing the right architecture depends on the specific application’s communication patterns, computational intensity, space, cooling infrastructure, and budget constraints.

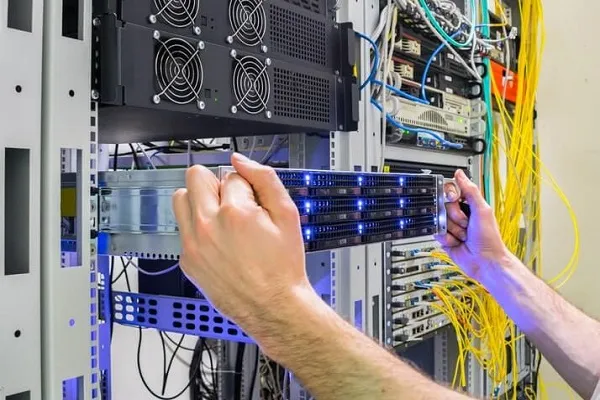

Technical Considerations
Designing or selecting a GPU server involves numerous technical factors to ensure optimal performance, reliability, and cost-effectiveness.
Internal Communication Protocols: The speed and efficiency of data transfer within a GPU server are critical. PCI Express (PCIe) remains the standard for CPU-to-GPU communication, with PCIe Gen4 and Gen5 offering increased bandwidth.
However, for GPU-to-GPU communication, technologies like NVIDIA’s NVLink and NVSwitch provide significantly higher throughput and lower latency, essential for multi-GPU workloads that require fast data sharing.
Cooling and Power Delivery: High-performance GPUs generate substantial heat and consume significant power.
Effective cooling solutions, such as advanced air-cooling with optimized airflow, liquid cooling systems, and even immersion cooling, are necessary to maintain thermal stability and prevent throttling.
Power supplies must also be robust and redundant to handle peak loads, ensuring reliability.
CPU Compatibility and Architecture: GPU servers rely on CPUs to manage system operations and facilitate communication with GPUs.
The choice between Intel Xeon, AMD EPYC, or ARM-based CPUs can affect performance, especially in multi-root configurations.
Matching CPU architecture and memory topology to the GPU workload is critical, as imbalances can create bottlenecks that reduce overall system efficiency.
Memory and Storage: GPU workloads often require large, fast memory pools.
Servers typically feature high-capacity DDR4 or DDR5 RAM and high-speed NVMe storage drives to feed data quickly to GPUs.
Network interfaces such as 100GbE or InfiniBand support fast data ingress and egress for distributed workloads.
Scalability and Maintenance: Modular designs with hot-swappable GPUs, redundant components, and remote management capabilities help maintain uptime and simplify upgrades. Software ecosystems and driver support also influence ease of deployment and maintenance.
By carefully balancing these factors, organizations can deploy GPU servers tailored to their specific computational needs and operational environments.
Real-World Insights and Performance Results
Extensive benchmarking and practical deployments reveal valuable insights into how different GPU server configurations perform under various workloads.
For example, in comparative tests between single-root and dual-root 8-GPU systems, single-root configurations consistently demonstrated roughly twice the peer-to-peer bandwidth and lower latency.
This resulted in faster synchronization and improved throughput for distributed deep learning tasks. Such improvements translate directly into reduced training times and better resource utilization.
NVIDIA’s A100 GPUs, designed specifically for data center environments, show marked performance advantages when installed in certified server platforms versus consumer-grade cards.
Features like multi-instance GPU (MIG) and error-correcting code (ECC) memory enhance reliability and workload partitioning, which are essential in production settings.
Server solutions like the Gigabyte G242-Z10, featuring AMD EPYC CPUs and multiple GPUs, provide a compelling balance of density, flexibility, and cost-effectiveness.
They support both PCIe and NVLink configurations, enabling users to tailor the interconnect to their workload demands.
In addition, real-world deployments highlight the importance of thermal management strategies, with liquid-cooled systems showing superior sustained performance under heavy workloads compared to traditional air-cooled servers.
Organizations also report benefits from GPU virtualization technologies that enable resource sharing and efficient cloud deployments, allowing multiple users to leverage powerful GPUs without requiring dedicated hardware.
These insights guide procurement and architecture decisions, helping users optimize performance while controlling costs.
Choosing the Right GPU Server
Selecting the appropriate GPU server depends heavily on workload type, scale, budget, and infrastructure.
|
Use Case |
Ideal Server Type |
Key Considerations |
|
Entry-Level Machine Learning |
Desktop GPU Server or Low-Cost |
Single consumer-grade GPU like NVIDIA 1050 Ti; limited cooling and power demands; cost-sensitive environments. |
|
Medium-Scale Clusters |
Rack-Mount GPU Servers (PCIe) |
Must consider power and cooling capacity; PCIe bandwidth; expansion capabilities. |
|
Enterprise AI Workloads |
DGX/HGX Systems with A100 GPUs |
Requires high-speed NVLink/NVSwitch; optimized cooling; multi-GPU tight coupling for maximum performance. |
|
Virtualized GPU Environments |
Servers supporting NVIDIA vGPU, Intel GVT-g, or AMD MxGPU |
Enables GPU sharing among multiple users or VMs; important for cloud or multi-tenant setups. |
Additional factors include future scalability, software ecosystem compatibility, warranty and support services, and energy efficiency ratings.
Organizations should evaluate their anticipated workload growth and infrastructure readiness to avoid costly redesigns or upgrades.
Future Trends: Open Platforms and Energy Efficiency
The GPU server landscape continues to evolve rapidly, with several trends shaping future developments.
NVLink Fusion and Open Interconnects: NVIDIA’s NVLink Fusion promises to create an open ecosystem where GPUs and CPUs from various vendors can interconnect over a unified high-speed fabric.
This could break current vendor lock-ins and foster heterogeneous computing environments optimized for diverse workloads.
Energy-Efficient Designs: With power consumption being a major operational expense, innovations in low-power GPUs, advanced cooling (including immersion cooling), and AI-driven power management are gaining traction.
These technologies reduce operational costs and environmental impact, a critical factor for hyperscale data centers.
AI at the Edge and Home: As AI workloads migrate closer to end-users, smaller form-factor GPU servers and embedded GPUs are becoming increasingly important.
This trend enables on-device inferencing and real-time processing without reliance on cloud connectivity, benefiting applications like autonomous vehicles, smart cameras, and IoT devices.
Software and Ecosystem Maturation: Continued advances in containerization, orchestration, and AI frameworks optimize utilization of GPU servers, making deployment more straightforward and efficient.
Scalability Challenges and Solutions in GPU Server Architectures
Scalability remains one of the key challenges when designing GPU server architectures, especially as demands for AI training, scientific computing, and real-time analytics grow exponentially.
Increasing the number of GPUs in a server or across a cluster brings complexities that impact performance, cost, and management.
One major scalability challenge is maintaining efficient communication between GPUs.
As the number of GPUs increases, traditional PCIe interconnects may become bottlenecks, leading to latency and bandwidth limitations.
To address this, technologies such as NVIDIA’s NVLink and NVSwitch have emerged, providing high-bandwidth, low-latency links that enable GPUs to communicate directly at much faster speeds than PCIe alone.
This ensures that multi-GPU configurations can work efficiently as a cohesive unit.
Another challenge involves workload balancing and resource allocation across GPUs in large clusters.
Advanced scheduling algorithms and container orchestration platforms like Kubernetes, coupled with AI-aware resource managers, allow for dynamic allocation of GPU resources to various workloads, improving utilization and minimizing idle times.
Power consumption and heat dissipation also escalate with scaling.
Hyperscale data centers invest heavily in advanced cooling solutions, including liquid immersion cooling and AI-driven thermal management, to maintain optimal operating temperatures and energy efficiency.
Lastly, software frameworks must evolve to support scalability, enabling developers to write distributed GPU code that seamlessly scales across nodes.
Open standards like CUDA Multi-Process Service (MPS), MPI for GPU clusters, and evolving AI frameworks play a critical role in this.
Understanding and overcoming these scalability challenges is essential for organizations aiming to maximize performance and ROI from their GPU investments.
Security Considerations in GPU Server Deployments
As GPU servers become central to processing sensitive workloads ranging from financial modeling to healthcare data analysis security emerges as a crucial concern.
The unique architecture and high computational power of GPU systems introduce specific security challenges that organizations must address.
One key aspect is data confidentiality and integrity during GPU computation.
Multi-tenant environments, common in cloud GPU offerings, require strict isolation mechanisms to prevent data leakage between users.
Technologies such as NVIDIA’s Multi-Instance GPU (MIG) enable partitioning of a single physical GPU into multiple isolated instances, enhancing security boundaries without compromising performance.
Another concern is the protection against side-channel attacks.
Since GPUs often share hardware resources, attackers could potentially exploit timing or power analysis to infer sensitive information.
Ongoing research and hardware-level mitigations aim to reduce such vulnerabilities.
Access control and authentication mechanisms must also be robust.
Integration with enterprise identity management systems and secure APIs ensures that only authorized users and applications can access GPU resources.
Moreover, software updates and patches are critical for maintaining security.
Given the complexity of GPU drivers and firmware, timely updates are essential to protect against newly discovered vulnerabilities.
Finally, encryption of data at rest and in transit, coupled with hardware accelerations for cryptographic operations, strengthens overall system security.
By proactively addressing these security considerations, organizations can confidently deploy GPU servers for mission-critical and sensitive applications, balancing performance with trustworthiness.
Summary
GPU servers represent a transformative technology that underpins modern AI, HPC, and graphical computing.
From small-scale desktop units to large-scale multi-GPU clusters, understanding the interplay of architecture, interconnects, cooling, CPU support, and application requirements is essential to maximizing performance and efficiency.
Future innovations promise even greater flexibility, energy efficiency, and integration, ensuring GPU servers remain at the cutting edge of computational technology.
